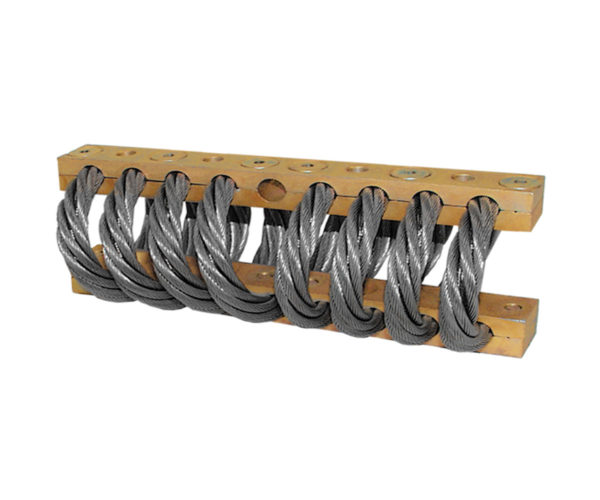

Wire Rope Isolator

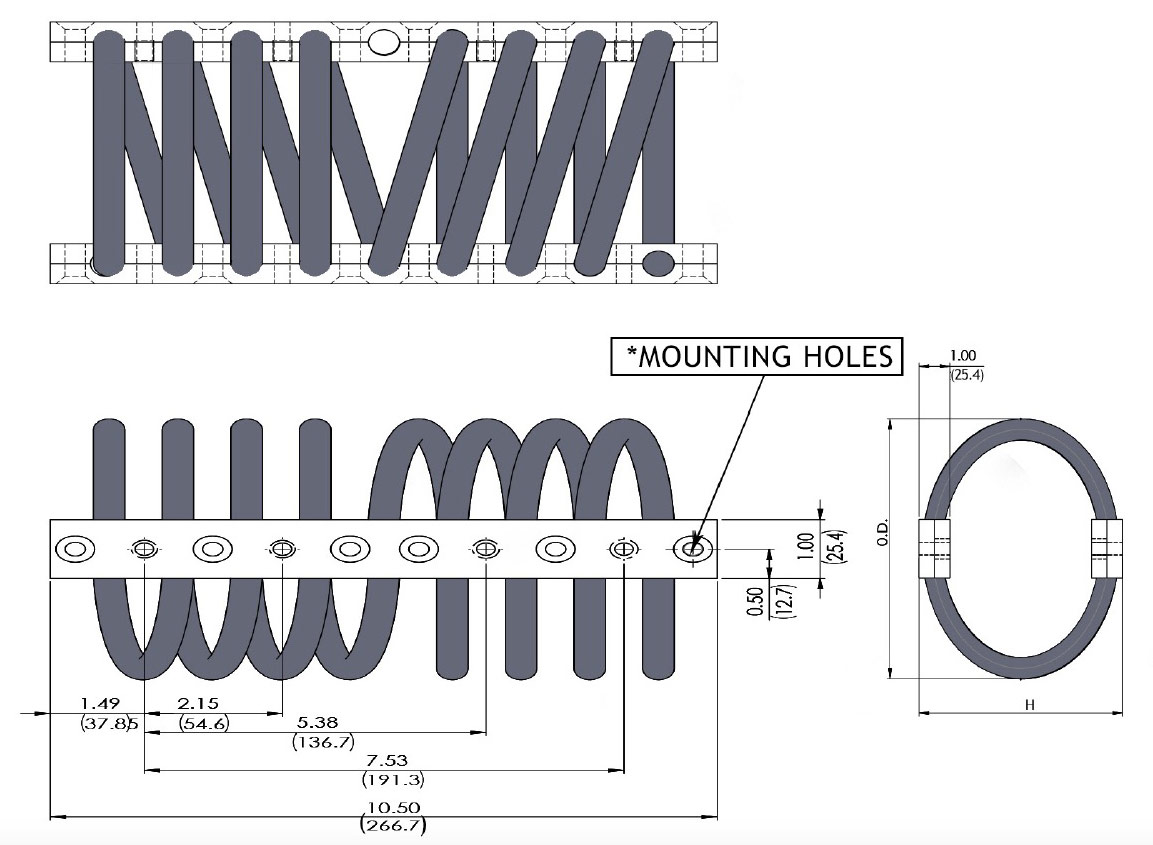

Isometric dimensions of Cable Isolators

Wire Rope Isolators – 5/8 Dia Series

1-9

CABLE DIAMETER:

  • 5/8 Inch

MATERIAL SPECIFICATION:

  • Cable Wire: Stainless Steel (Mil-W-83420)
  • Retaining Bars: Aluminum Alloy 6061-T6; Iridited (Mil-C-5541)
  • Retaining Clips: Stainless Steel

FEATURES:

  • Multi-Axis Isolation
  • Shock And Vibration Protection
  • Maintenance-Free

Download Inch PDF Download Inch and Metric PDF

Category:

Enquiry about Wire Rope Isolators - 5/8 Dia Series

You can also send us an email at support@shockandvibrations.com

Your Name

Email

Phone

What would you like to know

Description

Inch Thread

MODEL DIMENSIONS COMPRESSION SHEAR & ROLL 45° COMPRESSION / ROLL
WIRE DIA IN H IN OD IN SPRING RATE LB/IN MAX DEFL IN SPRING RATE LB/IN MAX DEFL IN SPRING RATE LB/IN MAX DEFL IN
SV0625-01-A 5/8″ 3.50 4.00 3721 1.2 1602.0 1.2 1950.0 1.8
SV0625-02-A 3.90 4.40 2789 1.4 1258.0 1.4 1533.0 2.3
SV0625-03-A 4.30 5.30 1774 1.8 821.0 1.8 888.0 2.8
SV0625-04-A 4.70 6.00 1199 2.2 641.0 2.2 549.0 3.2
SV0625-06-A 5.00 6.50 974 2.5 523.0 2.5 462.0 3.6

* Shown with 3/8-24 tapped holes both bars; replace -A with -C for CSK holes.

Metric Thread

MODEL DIMENSIONS COMPRESSION SHEAR & ROLL 45° COMPRESSION / ROLL
WIRE DIA IN (MM) H IN (MM) OD IN (MM) SPRING RATE LB/IN (KGF/MM) MAX DEFL IN SPRING RATE LB/IN (KGF/MM) MAX DEFL IN (MM) SPRING RATE LB/IN (KGF/MM) MAX DEFL IN (MM)
SV625-01 5/8” (15.9) 3.5 (88.9) 4.0 (101.60) 3721 (66.45) 1.2 (30.48) 1602 (28.61) 1.2 (30.48) 1950 (34.82) 1.8 (45.72)
SV625-02 3.9 (99.06) 4.4 (111.8) 2789 (49.81) 1.4 (35.56) 1258 (22.47) 1.4 (35.56) 1533 (27.38) 2.3 (58.4)
SV625-03 4.3 (109.2) 5.3 (134.6) 1774 (31.58) 1.8 (45.72) 821 (14.66) 1.8 (45.72) 888 (15.86) 2.8 (71.1)
SV625-04 4.7 (119.4) 6.0 (152.4) 1199 (21.41) 2.2 (55.88) 641 (11.45) 2.2 (55.88) 549 (9.80) 3.2 (81.28)
SV625-05 5.0 (127) 6.5 (165.1) 974 (17.39) 2.5 (63.50) 523 (9.34) 2.5 (63.50) 462 (8.25) 3.6 (91.44)

* Shown with M6 Threaded Inserts both bars | Dimension in ( ) are metric

Isometric dimensions of Cable Isolators
