Wire Rope Isolator

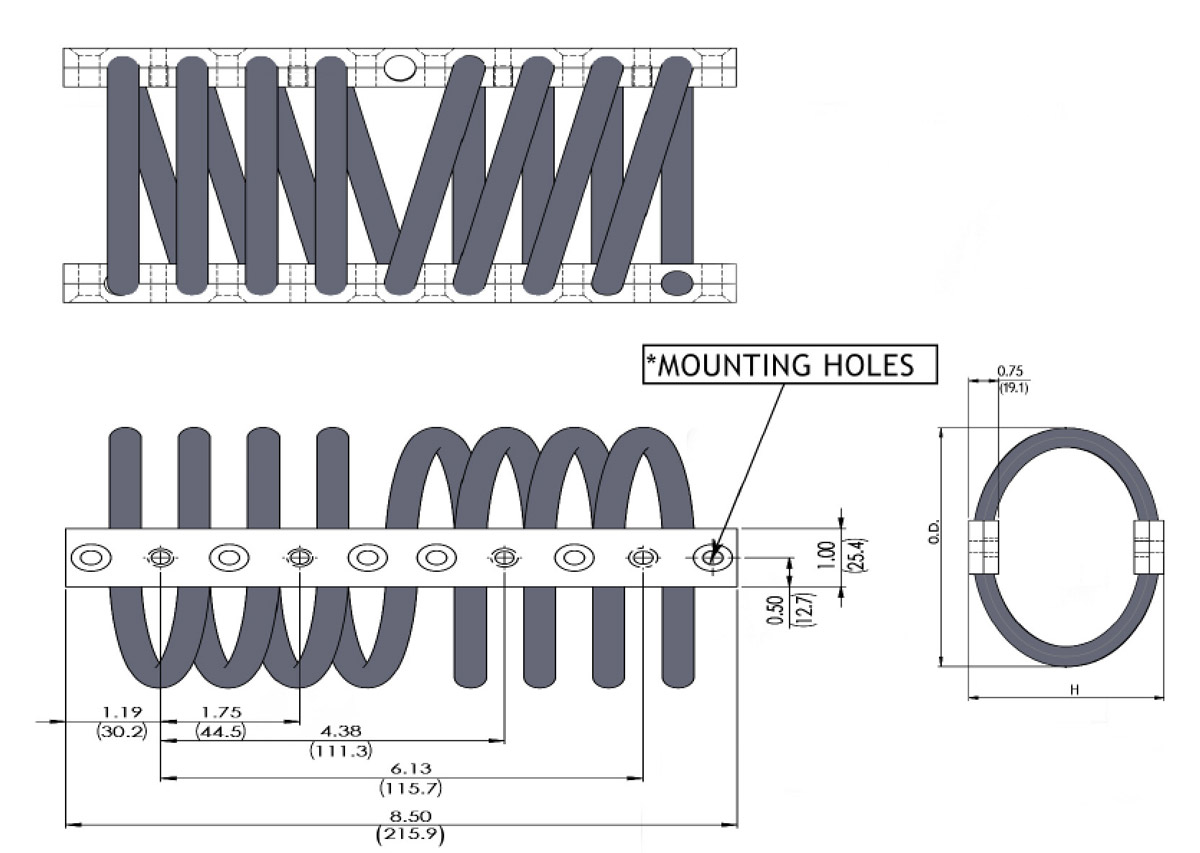

Isometric drawing show dimensions of cable isolators

Wire Rope Isolators – 1/2 Dia Series

1-8

CABLE DIAMETER:

  • 1/2 Inch

MATERIAL SPECIFICATION:

  • Cable Wire: Stainless Steel (Mil-W-83420)
  • Retaining Bars: Aluminum Alloy 6061-T6; Iridited (Mil-C-5541)
  • Retaining Clips: Stainless Steel

FEATURES:

  • Multi-Axis Isolation
  • Shock And Vibration Protection
  • Maintenance-Free

Download Inch PDF Download Inch and Metric PDF

Category:

Enquiry about Wire Rope Isolators - 1/2 Dia Series

You can also send us an email at support@shockandvibrations.com

Your Name

Email

Phone

What would you like to know

Description

Inch Thread

MODEL DIMENSIONS COMPRESSION SHEAR & ROLL 45° COMPRESSION / ROLL
WIRE DIA IN H IN OD IN SPRING RATE LB/IN MAX DEFL IN SPRING RATE LB/IN MAX DEFL IN SPRING RATE LB/IN MAX DEFL IN
SV0500-01-A 1/2″ 3.25 4.00 1730 1.5 795.0 1.2 705.0 2.5
SV0500-02-A 3.50 4.13 1492 1.6 674.0 1.3 604.0 2.7
SV0500-03-A 3.75 4.75 1159 1.7 507.0 1.5 409.0 3.2
SV0500-04-A 4.25 5.25 718 2.3 357.0 1.8 280.0 3.5
SV0500-05-A 4.90 5.65 469 2.8 243.0 2.3 180.0 4.0
SV0500-06-A 5.40 6.13 339 3.5 209.0 2.6 134.0 4.5
SV0500-06-A 6.10 7.10 229 4.1 120.0 3.0 87.0 5.2

* Shown with 1/4-28 threaded inserts both bars; replace -A with -C for CSK holes.

Metric Thread

MODEL DIMENSIONS COMPRESSION SHEAR & ROLL 45° COMPRESSION / ROLL
WIRE DIA IN (MM) H IN (MM) OD IN (MM) SPRING RATE LB/IN (KGF/MM) MAX DEFL IN SPRING RATE LB/IN (KGF/MM) MAX DEFL IN (MM) SPRING RATE LB/IN (KGF/MM) MAX DEFL IN (MM)
SV500-01 1/2” (12.7) 3.25 (82.6) 4.0 (101.60) 1730 (30.89) 1.5 (38.1) 795 (14.2) 1.2 (30.48) 705 (12.59) 2.5 (63.5)
SV500-02 3.50 (88.9) 4.13 (104.9) 1492 (26.64) 1.6 940.6) 674 (12.04) 1.3 (33) 604 (10.79) 2.7 (68.6)
SV500-03 3.75 (95.3) 4.75 (120.7) 1159 (20.7) 1.7 (43.2) 507 (9.05) 1.5 (38.1) 409 (7.3) 3.2 (81.3)
SV500-04 4.25 (108) 5.25 (133.4) 718 (12.82) 2.3 (58.4) 357 (6.38) 1.8 (45.7) 280 (5.0) 3.5 (88.9)
SV500-05 4.90 (124.5) 5.65 (143.5) 469 (8.38) 2.8 (71.1) 243 (4.34) 2.3 (58.4) 180 (3.21) 4.0 (101.6)
SV500-06 5.40 (137.2) 6.13 (155.7) 339 (6.05) 3.5 (88.9) 209 (3.73) 2.6 (66.04) 134 (2.39) 4.5 (114.3)
SV500-07 6.10 (154.9) 7.10 (180.3) 229 (4.09) 4.1 (104.1) 120 (2.14) 3.0 (76.2) 87 (1.55) 5.2 (132.1)

* Shown with M6 Threaded Inserts both bars | Dimension in ( ) are metric

Isometric drawing show dimensions of cable isolators
