Type “Y-4” series mounts with one inch deflection solves troublesome vibration problems. These mounts are preferred over most rubber mounts due to the high static deflection of the springs. “Y-4” series spring mounts are designed for noise and vibration control applications in critical areas on concrete or wooden floors.
FEATURES:
Deflection: 1″
Load Range: 170 – 8800 lbs

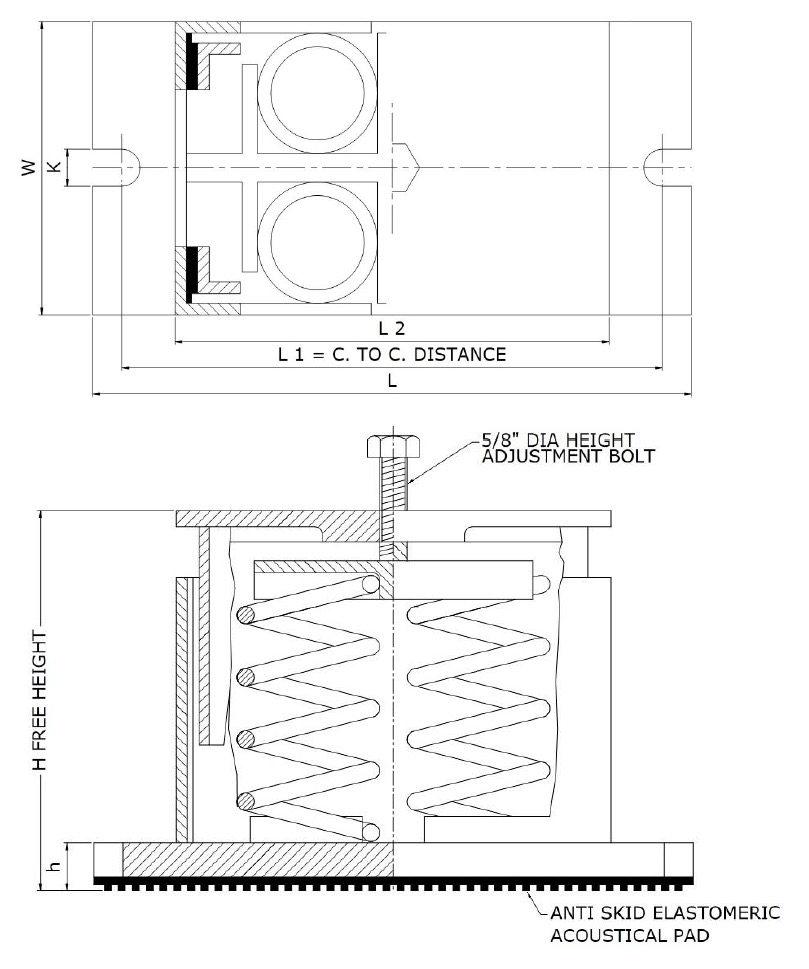

Three piece cast iron and powder coated housing for the springs.
Provided with slotted mounting holes and a non-skid elastomeric pad on the base for bolting to the floor.
Resilient elastomeric rubbers on the inner panel prevent metal to metal contact and allow the springs to function properly.
Built in leveling device (external or internal).
Can be supplied with flat top or non-skid neoprene top load surfaces in case of internal level adjustment.
NOTES:
Spring: Hot Dip Galvanized
Base Plate has non-skid Acoustical Neoprene Pad
Adjust mounting so that the upper housing clears the lower housing by at least 1/4″ but not more than 1/2″

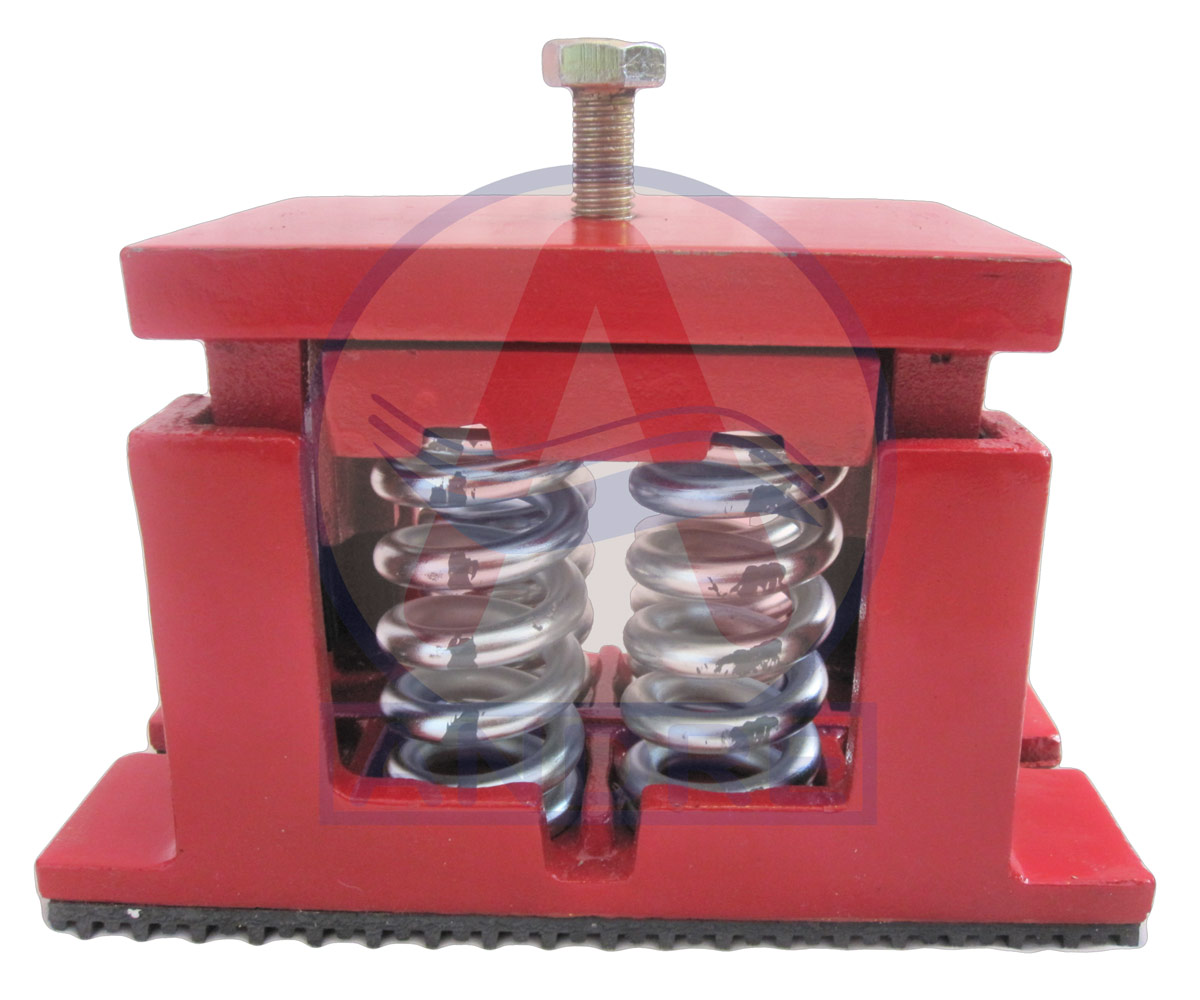

Spring Mounts – Y-4-100 Series
Type “Y-4” series mounts with one inch deflection solves troublesome vibration problems. These mounts are preferred over most rubber mounts due to the high static deflection of the springs. “Y-4” series spring mounts are designed for noise and vibration control applications in critical areas on concrete or wooden floors.
FEATURES:
NOTES:
APPLICATIONS
Download PDF
Enquiry about Spring Mounts - Y-4-100 Series
Your Name
Email
Phone
What would you like to know
Description
(External Adjustment)
(Internal Adjustment – Pin Top)
(Internal Adjustment – Flat Top)
(Internal Adjustment – Neoprene Top)
* x = (Model Types E, P, F or N see above)
